পণ্যের বিবরণ:
প্রদান:
|
| Product: | Joints for Ropes Anti-bending Connector | Dimensions A: | 37mm |
|---|---|---|---|
| Dimensions D: | 17mm | Dimensions C: | 20mm |
| Dimensions B: | 76mm | Dimensions d: | 12mm |

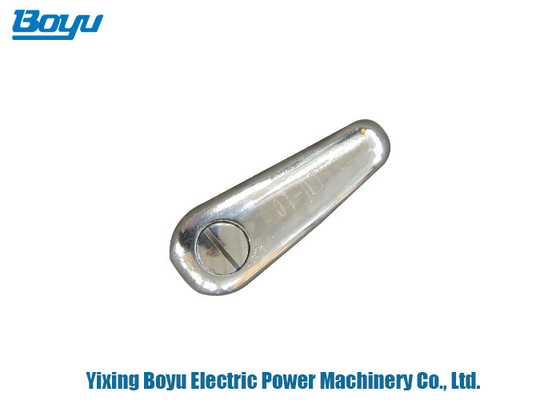

Transmission Line Stringing Tools Joints for Ropes Anti-bending Connector

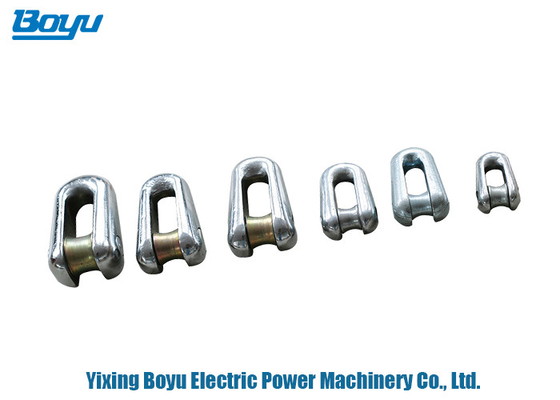

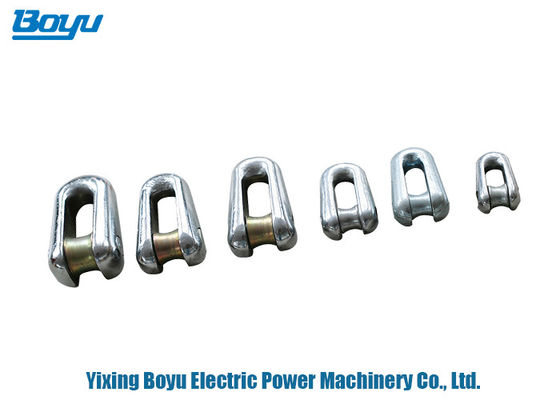

TYSLU Connectors
The connectors are specifically designed to connect pilot rope lengths or pulling rope lengths and to pass over the puller bull wheels. They are made of highly tensile galvanized steel.
| Model | Dimensions (mm) | Rated load | Weight | |||||
| A | B | C | d | D | E | (kN) | (kg) | |
| SLU-1 | 36 | 68 | 18 | 10 | 14 | 29 | 10 | 0.2 |
| SLU-3 | 37 | 76 | 20 | 12 | 17 | 31 | 30 | 0.22 |
| SLU-5 | 50 | 96 | 23 | 18 | 19 | 42 | 50 | 0.6 |
| SLU-8 | 56 | 110 | 28 | 20 | 22 | 50 | 80 | 0.8 |
| SLU-10 | 59 | 126 | 30 | 22 | 26 | 54 | 100 | 1.2 |
| SLU-13 | 61 | 134 | 32 | 24 | 27 | 56 | 130 | 1.3 |
| SLU-15 | 63 | 138 | 37 | 27 | 28 | 58 | 150 | 1.4 |
| SLU-25 | 80 | 178 | 44 | 32 | 35 | 72 | 250 | 3.0 |
| SLU-28 | 80 | 178 | 44 | 32 | 35 | 72 | 280 | 3.0 |
| SLU-32 | 85 | 186 | 42 | 30 | 38 | 80 | 320 | 3.9 |
